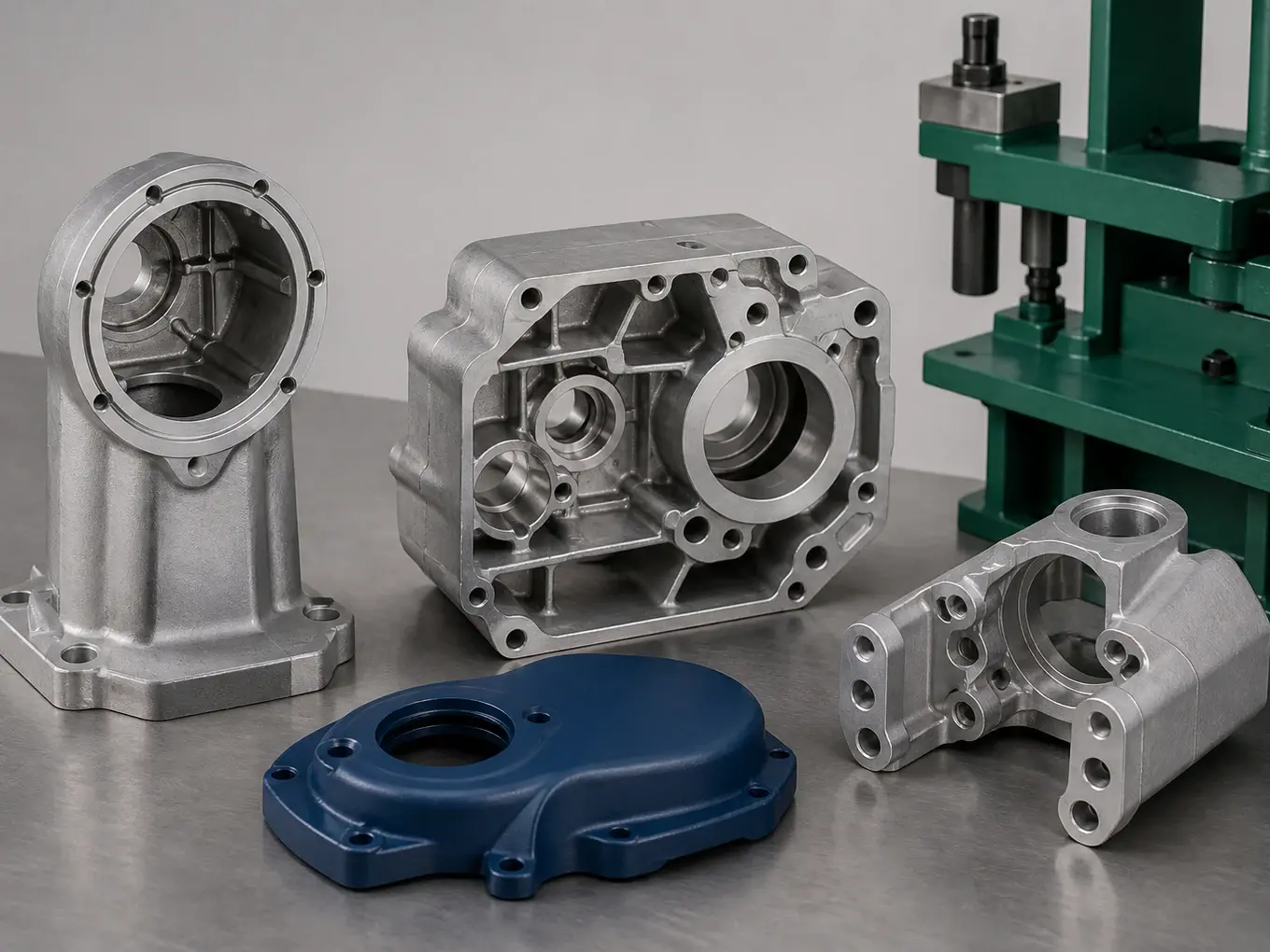

Robotics aluminum die casting parts are structural castings for articulated arms and automation equipment — joint housings, harmonic drive cases, arm segments, gripper bodies, motor mounts and encoder housings. CharMax Precision casts them in A380 and ADC12 for stiffness at low moving mass, then machines bearing bores and mounting interfaces in-house to ±0.02 mm so the assembled robot holds its repeatability.
Robotics aluminum die casting parts are structural castings for articulated arms and automation equipment — joint housings, harmonic drive cases, arm segments, gripper bodies, motor mounts and encoder housings. CharMax Precision casts them in A380 and ADC12 for stiffness at low moving mass, then machines bearing bores and mounting interfaces in-house to ±0.02 mm so the assembled robot holds its repeatability.
Robotics is an unusual industry to cast for because two requirements pull against each other. Every gram at the wrist reduces payload and slows acceleration, so the part wants to be as light as possible. At the same time any deflection in the load path shows up directly as position error at the tool centre point, so the part wants to be stiff. Ribbed, cored castings resolve that better than either a machined billet part or a welded fabrication.
Volumes are also different. A successful robot model might ship a few thousand units a year rather than hundreds of thousands, and the design revises between generations. That makes tooling strategy part of the engineering conversation, and it is why we routinely machine prototype parts from billet first and move the same design to a die once the geometry and the volume are settled.
| Typical alloys | A380 for machined housings, ADC12 for thin-wall covers and shrouds |
|---|---|
| Typical part weight | 150 g to 8 kg per casting |
| Machine range | 160 to 1,250 tons cold chamber |
| Typical annual volume | 500 to 20,000 parts per robot model |
| Typical wall thickness | 2.5 to 3.5 mm, ribs at 60 to 80% of the adjoining wall |
| As-cast tolerance | ±0.1 mm for the first 25 mm |
| Machined tolerance | ±0.02 mm on bearing bores, mounting faces and datum pads |
| Bore to face relationship | Concentricity and perpendicularity within 0.02 to 0.03 mm when cut in one setup |
| Machined flatness | 0.02 mm per 100 mm on mounting interfaces |
| Common finishes | Shot blast, powder coat to RAL, chromate conversion on grounding faces |
| Documentation | FAI with GD&T results, CMM reports on datum features, material certificate |
| Prototype route | CNC machined parts from billet before committing to tooling |
Robotics enquiries usually come from a mechanical engineer who has already built the machine once, either machined from billet or fabricated, and now needs the same performance at production cost. The constraints they carry are specific to moving machinery.
Mass at the outer axes reduces rated payload and forces larger motors, bigger drives and heavier counterbalancing further down the arm. A kilogram removed from a wrist casting is worth several kilograms of system weight, so the target is stiffness per gram rather than absolute strength.
Repeatability specifications are quoted in hundredths of a millimetre, and the controller cannot compensate for a structure that flexes differently under different loads. Compliance in a joint housing or arm segment shows up directly at the tool centre point, which is why section stiffness and rib layout matter more than tensile strength.
A structure with a low first natural frequency forces the servo loop to be detuned, which slows cycle time. Stiff, closed-section castings raise that frequency compared with an open fabricated frame, and the damping of a cast section helps settle vibration after each move.
Harmonic drive and cycloidal reducer housings need a bore concentric to the output flange and a face square to that bore, because misalignment loads the bearing, adds friction and shortens gearbox life. This is a machining requirement, not a casting requirement, and it has to be planned into the casting.
A few thousand units a year makes tooling amortisation a genuine question. Customers arrive expecting to hear that they are too small for casting, and often the honest answer is that a simplified single-cavity die plus more machining beats both billet machining and a full production tool.
Robot platforms iterate. Mounting patterns move, motors change supplier, cable routing gets revised. Tooling has to be designed with the likely change zones in inserts so a revision costs an insert rather than a new die.
The reason casting wins on robot structures is that stiffness comes from geometry, and casting makes geometry cheap. A closed box section with internal ribs, hollow cable passages and locally thickened bearing bosses is straightforward to cast and slow or impossible to machine from solid. The same shape machined from billet would require multiple setups, remove most of the raw material as chips, and still end up heavier because a machinable geometry is not the optimal geometry.
Ribs are the main tool. Held at 60 to 80% of the adjoining wall thickness they add section modulus without creating a heavy section that solidifies last and traps porosity. A 3 mm wall with a rib grid typically outperforms a 6 mm plain wall in bending stiffness at around half the mass, and it cools evenly enough to stay dimensionally stable.
Part consolidation compounds the benefit. A joint assembly built from a machined housing, two bolted-on brackets and a stamped cover becomes one casting with one set of datums, which removes the assembly tolerance stack that was quietly eating the repeatability budget.
These are the part families that come up most often in robotics and automation programmes, with the requirement that actually drives the process decisions on each.
| Component | Alloy | Key requirement | Typical finish |
|---|---|---|---|
| Robot joint housing | A380 | Torsional stiffness, machined bearing bore concentric to the output face | Shot blast, powder coat, bore and face machined bare |
| Harmonic drive and reducer housing | A380 | Bore roundness and concentricity within 0.02 to 0.03 mm, square mounting face | Shot blast, machined interfaces bare |
| Arm segment and link | A380 | Bending and torsional stiffness at minimum mass, coaxial end interfaces | Powder coat to the customer RAL colour |
| Gripper body and end-effector plate | ADC12 | Low inertia, repeatable jaw mounting geometry, thin wall | Hard anodize on request, otherwise chromate conversion |
| Motor mount and adapter flange | A380 | Pilot diameter fit, bolt pattern position, face perpendicularity | Shot blast, machined pilot and face |
| Encoder and sensor housing | ADC12 | Thin wall, sealed cavity, EMI shielding for signal integrity | Powder coat with masked grounding pad |
| Base and pedestal casting | A380 | Mass and damping at the foundation, flat mounting plane, cable entry | Powder coat, machined mounting plane |
| AGV and AMR chassis component | A380 | Stiffness at low mass, mounting datums for drive and sensor modules | Powder coat, chromate conversion where grounded |
| Cover, shroud and cable guard | ADC12 | 1.5 to 2 mm wall, cosmetic outer surface, snap or bolt fit to the structure | Powder coat, textured to hide handling marks |
Robotics castings are machined more heavily than most, because the bearing and mounting interfaces carry the accuracy. A380 has the best machinability of the common die casting alloys, holds a clean thread and produces a stable bore, which is why it is our default for joint and gearbox housings. ADC12 goes on thin covers, gripper bodies and encoder housings where flow into 1.5 to 2 mm walls matters more than machining behaviour.
A rib grid is only worth its mass if it lies along the load path. We ask for the load case — payload, reach, worst-case moment, dynamic factor — during DFM so ribs are placed where the section is in bending rather than distributed evenly for appearance. Ribs stay at 60 to 80% of the adjoining wall to avoid sink marks on the opposite face.
We leave 0.5 to 1.0 mm of stock on faces that will be cut and cast the rest to net shape. Blanket machining allowance across a large casting adds cycle time, adds distortion risk when material is removed unevenly, and adds cost without adding accuracy.
Machining accuracy on a casting is limited by how repeatably the fixture can locate it. We cast defined datum pads and locating bosses rather than clamping on as-cast draft surfaces, so every part in the lot presents the same reference to the machine.
Bolt patterns, connector cutouts and cable entries are the features most likely to change between robot generations. Where you flag them early we build them as replaceable inserts, so a revision costs an insert and a week rather than a new die and six.
Powder coat to your RAL colour is the usual choice on visible arm segments and covers because it tolerates minor as-cast variation and resists handling marks on an assembly line. Grounding faces and bearing bores are masked or machined clean so the coating does not become an unintended insulator or an unmeasured dimension. Anodizing is available but comes out darker and less uniform on high-silicon cast alloys, which matters if the part sits next to an anodized extrusion.
The repeatability of a robot is built from a chain of interfaces: gearbox to housing, housing to arm, arm to the next joint. As-cast accuracy of ±0.1 mm is fine for the shape and completely inadequate for those interfaces, so the strategy is to cast the structure and machine the chain. Where a bore and its reference face are cut in the same setup, the geometric relationship between them is held by the machine rather than by the stack-up of two operations.
The values below are what we hold routinely on robotics work. Tighter numbers are achievable on specific features with dedicated fixturing and inspection, so send the print with its geometric tolerances and we will confirm feature by feature which are cast, which are machined, and which need a change.
| Interface | Requirement | How it is held |
|---|---|---|
| Gearbox or bearing bore | ±0.02 mm diameter, H7 fit achievable | Machined after casting from a cast datum, finish bored in the final setup |
| Bore to mounting face | Perpendicularity within 0.02 to 0.03 mm | Bore and face cut in one setup on a 4 or 5-axis centre |
| Coaxial end interfaces on an arm segment | Concentricity within 0.03 mm | Both ends machined in one fixture without re-datuming |
| Mounting plane flatness | 0.02 mm per 100 mm | Face milled after casting; as-cast flatness is 0.1 mm per 100 mm |
| Bolt hole pattern position | ±0.05 mm | Drilled and reamed from the machined datum, not from as-cast bosses |
| Pilot diameter for motor flange | H7 fit | Machined; as-cast holes hold ±0.1 mm and are used as cored pilots only |
| Overall envelope and rib geometry | ±0.1 mm for the first 25 mm | As-cast, no machining required |
| Sealing land for a gasket or O-ring | Ra 1.6 µm or better, flat within 0.05 mm | Machined; as-cast surface is Ra 1.6 to 3.2 µm |
Dimensions crossing the parting line carry ±0.15 mm as-cast and across a moving slide ±0.2 mm, so critical relationships are placed within one die half wherever the geometry allows.
Robotics customers rarely ask for automotive-style capability studies. What they ask for is proof that the mounting interfaces are where the drawing says, because an out-of-position bore is discovered during robot calibration rather than during incoming inspection.
Most robotics programmes should not commit to a die on the first design revision. Tooling takes 25 to 40 days and locks the geometry, while the mechanical design is usually still moving in response to prototype testing. The sequence that works is to machine the first parts from billet, validate stiffness and fit in a real machine, then convert the proven geometry to a casting.
That conversion is a redesign, not a file transfer. A part designed for machining has flat walls, no draft, sharp internal corners and uniform thickness driven by cutter access. The cast version keeps the same interfaces and envelope but gains draft, radii, ribs and cored pockets, and it usually comes out lighter than the machined original. We do that conversion as part of the DFM review.
Our sister CNC operation machines the prototype parts from the same drawing, so the interfaces you validated on billet parts are the interfaces the casting is quoted against. If your annual volume turns out to sit below the casting break-even point, machining remains a legitimate production answer and we will say so.
Real parts we have manufactured that involved this capability.
Die casting pays for itself above roughly 1,000 parts per year. Below that, or while you are still validating a design, CNC machining from billet is usually the faster and cheaper route. CharMax Precision runs a dedicated aluminum CNC machining operation for exactly that work, so you can prototype machined, then move to casting when volume justifies tooling.
A casting designed for stiffness rather than for cutter access typically comes out 15 to 30% lighter than the same function machined from billet, and the saving grows with size. The reason is that ribs, hollow sections and cored pockets cost almost nothing in a die but cost machining time on a mill, so machined parts end up carrying material that exists only because removing it was not worth the cycle time. Against a steel fabrication the saving is closer to 60%.
Not as-cast, but yes after machining. As-cast bores hold ±0.1 mm, which is nowhere near a reducer fit, so the bore and its reference face are machined in one setup on a 4 or 5-axis centre from cast datum pads. That routinely gives ±0.02 mm on the bore, an H7 fit where specified, and concentricity and perpendicularity within 0.02 to 0.03 mm. Send the print with the geometric callouts and we will confirm each one before quoting.
Often yes, but it depends on the part. At 1,500 units a year a single-cavity die at 3,000 to 12,000 USD adds roughly 2 to 8 USD per part in the first year of amortisation, which a complex ribbed housing recovers easily against billet machining. A simple flat plate does not. We quote both routes at that volume so the comparison is visible, and if machining wins we will tell you rather than push the tooling.
Yes. Our sister CNC operation machines prototype parts from billet against the same drawing, with no tooling and no minimum quantity, which is the right way to validate stiffness, fit and cable routing in a real machine before the geometry is frozen in steel. When the design settles we convert it for casting — adding draft, radii, ribs and cored pockets while holding your validated interfaces — and quote the production tooling.
It can, and the risk is entirely predictable, so it is managed at design stage. Deep machining into a heavy section can open a subsurface void into a bearing fit or a sealing land, which is why we need the machining areas marked on the drawing before the gating is designed. Gate and overflow layout is then arranged so the last metal to freeze sits away from those regions, vacuum assist is used where the geometry requires it, and the first lots are verified by sectioning or X-ray.
Anodizing die cast aluminum is possible but it will not match an anodized extrusion. The 8 to 12% silicon that makes the alloy castable produces a darker, greyer and less uniform anodic film than wrought 6000-series aluminum, and the difference is obvious when the two parts sit side by side. For colour-matched robot covers we recommend powder coating both parts to the same RAL reference, which gives a consistent appearance and better handling durability on an assembly line.
A 3D model in STEP, IGES, X_T, SLDPRT or native CAD format, plus a 2D drawing showing critical dimensions, tolerances, surface finish, alloy and any inspection requirements. If you only have a 3D model we can still quote, but a drawing that marks which features are critical to function will get you a more accurate price and prevent misunderstandings later.
Send your 3D model, the load case and the annual volume. You will get piece pricing, tooling cost, a machining plan for the bearing and mounting interfaces, and a written DFM report on where mass can come out without losing stiffness.
